Light Rail Drawer Slides

Light Rail Drawer Slides

Sliding Systems now offer a range of light duty drawer slides to the volume manufacturer. Supported by Sliding Systems Asia for Taiwan manufacture and logistical support, we can distribute single box, to pallet and containers of value products from our global warehouses. Call-off, full range stock support from our European, UK and US warehouses is being established. Backed up by fast stock support out of Asia. We offer quality rolled steel or stainless steel drawer slides with a variety of features, such as soft close, push to open and detachable beams across all lengths. Boxed quantities ensure highly competitive OEM pricing.

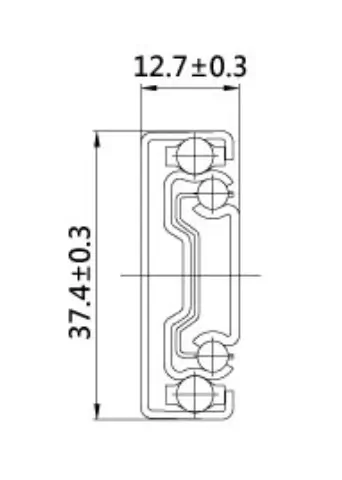

Cold Rolled Steel

Profile Width: 12mm
Height: 37mm

Closed Length:
250mm - 600mm
Extended Length:
250mm - 600mm
Max load capacity:
35kg per pair

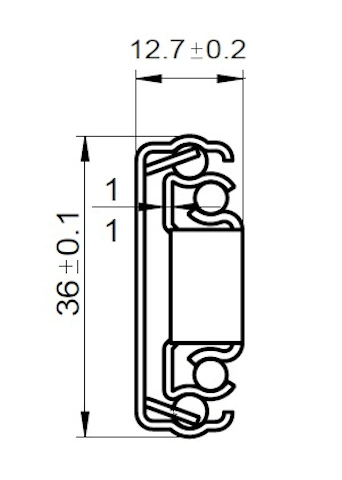

4032.R20D-SC Soft-Close Telescopic Slide

Profile Width: 12mm
Height: 36mm

Closed Length:
250mm - 600mm
Extended Length:
147mm - 600mm
Max load capacity:
35kg per pair
4032.R21D Light Rail Telescopic Slider

Profile Width: 12mm
Height: 45mm

Closed Length:
250mm - 600mm
Extended Length:
250mm - 600mm
Max load capacity:
45kg per pair
4032.R21D-SC Soft-Close Telescopic Slide

Profile Width: 12mm
Height: 45mm

Closed Length:
350mm - 550mm
Extended Length:
340mm - 540mm
Max load capacity:
35kg per pair
4032.R21D-PO push-to-open Light Rail Telescopic Slider

Profile Width: 12mm
Height: 45mm

Closed Length:
250mm - 550mm
Extended Length:
238mm - 585mm
Max load capacity:
45kg per pair
4032.R21D-SCPO Soft-Close Push-To-Open Telescopic Slide

Profile Width: 12mm
Height: 45mm

Closed Length:
300mm - 550mm
Extended Length:
302mm - 585mm
Max load capacity:
30kg per pair

Stainless Steel

4032.R21DS-SC Soft-Close Telescopic Slide

Profile Width: 12mm
Height: 46mm

Closed Length:
300mm - 700mm
Extended Length:
300mm - 700mm
Max load capacity:
45kg per pair
4032.R21DS-SC Soft-Close Telescopic Slide

Profile Width: 12mm
Height: 46mm

Closed Length:
300mm - 600mm
Extended Length:
248mm - 600mm
Max load capacity:
30kg per pair
