4032.R21D Telescopic slide (40-45kg)

4032.R21D Telescopic slide (40-45kg) Rolled Steel

R21D Rolled steel Telescopic slide, with full extension and detachable inner beam. RoHS compliant electroplating on steel, passing 48 hour salt spray test. Certified BIFMA 50,000 static cycles.
Features: Durable slide rails with smooth and stable travel, Push-button quick-release mechanism.

Specification Details:

  • Space Envelope Width: 12mm
  • Height: 45mm
  • Closed Length: 250-600mm
  • Extension Length: 250-600mm
  • Maximum Load Capacity: 40-45 kg/pair
  • Number of beams: 3
  • Extension Type: Total
  • Material: Cold rolled steel

Profile:

Suitable For:

  • FURNITURE - Architecture & Sliding Units
  • SPECIAL VEHICLES - Commercial & Response Vehicles

R21D Rolled steel Telescopic slide, with full extension and detachable inner beam. RoHS compliant electroplating on steel, passing 48 hour salt spray test. Certified BIFMA 50,000 static cycles.

Features: Durable slide rails with smooth and stable travel, Push-button quick-release mechanism.

The R21D Telescopic slide can be purchased online, for global delivery by follwing this link.

Sold in boxed quantities to ensure highly competitive OEM pricing

Code

Closed Length (mm)

Extension (mm)

Max Load Capacity (kg)
4032.R21D.250 250mm 250mm 40kg
4032.R21D.300 300mm 302mm 45kg
4032.R21D.350 350mm 354mm 45kg
4032.R21D.400 400mm 400mm 45kg
4032.R21D.450 450mm 452mm 45kg
4032.R21D.500 500mm 515mm 45kg
4032.R21D.550 550mm 558mm 45kg
4032.R21D.600 600mm 600mm 40kg

Downloads Access

To download the CAD files and specifications for this product you need to be logged in.

Data Sheet & main product information -

4032.R21D Datasheet

4032.R21D - 250mm - 3D STEP File
4032.R21D length 250mm

4032.R21D - 300mm - 3D STEP File
4032.R21D length 300mm

4032.R21D - 350mm - 3D STEP File
4032.R21D length 350mm

4032.R21D - 400mm - 3D STEP File
4032.R21D length 400mm

4032.R21D - 450mm - 3D STEP File
4032.R21D length 450mm

4032.R21D - 500mm - 3D STEP File
4032.R21D length 500mm

4032.R21D - 550mm - 3D STEP File
4032.R21D length 550mm

4032.R21D - 600mm - 3D STEP File
4032.R21D length 600mm

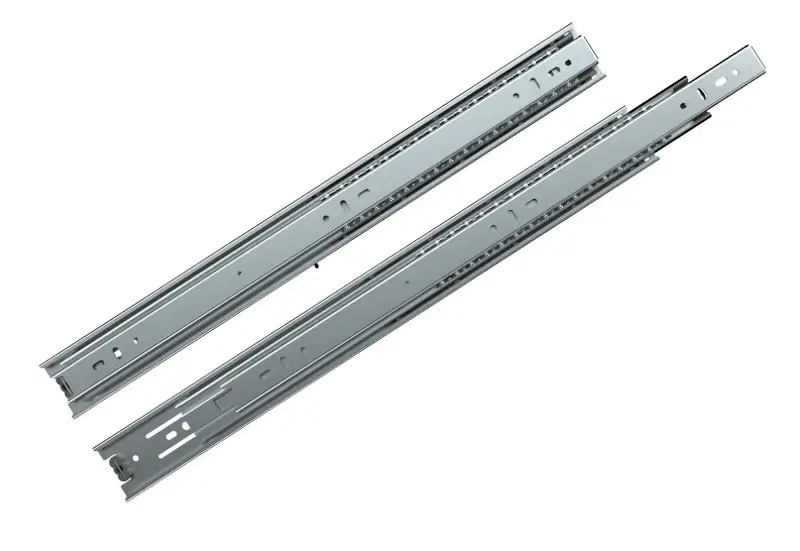

4032.R21D Light Rail Telescopic Slider

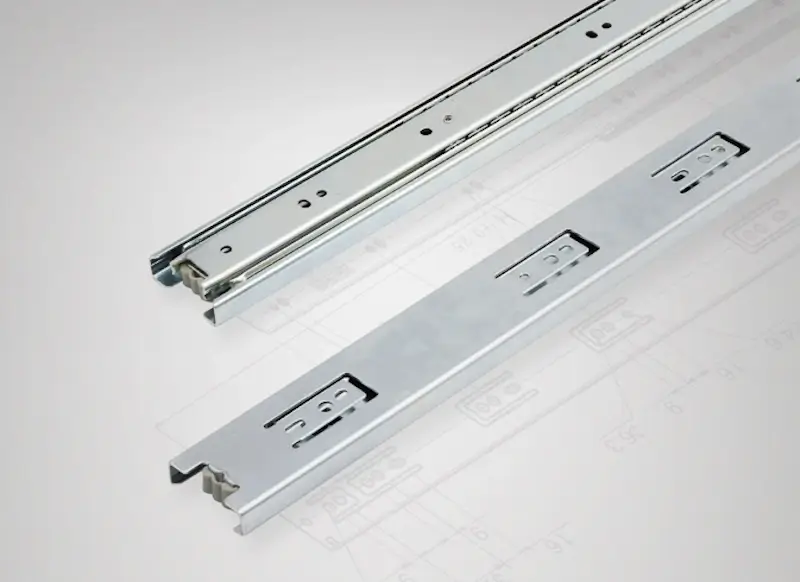

4032.R21D Light Rail Telescopic Slider end profile

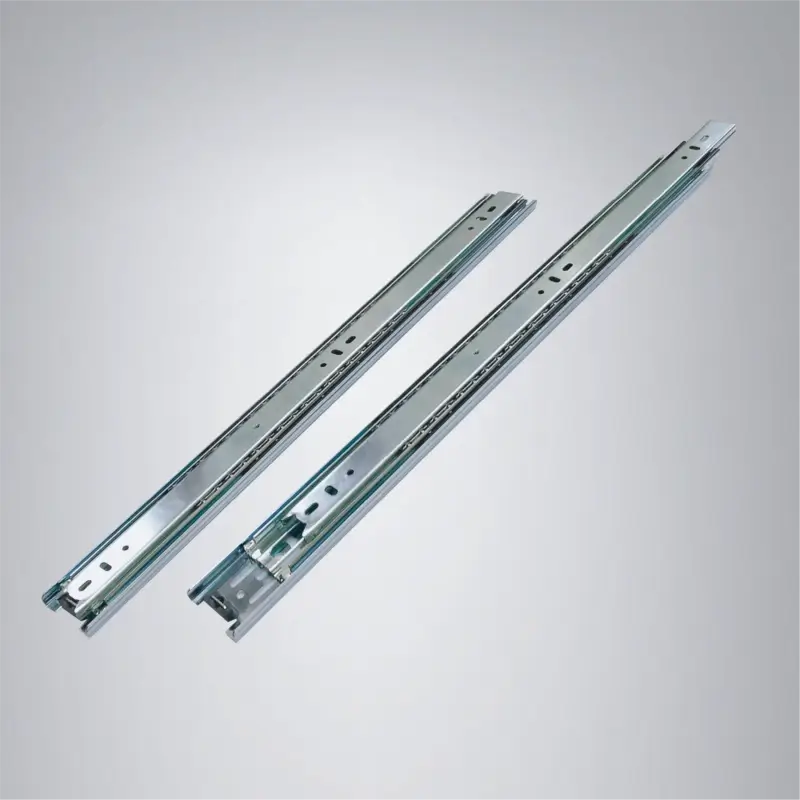

4032.R21D Light Rail Telescopic Slider
4032.R21D Light Rail Telescopic Slider
4032.R21D Light Rail Telescopic Slider

Furniture & Architecture

We are delighted to be able to advise our customers on the most diverse projects possible.

One day we could be talking to an ambitious DIY customer who wants to install a removable console tray in his game room and the next project could be a whole building interior refurbishment destined for apartments. Whilst each project represents different challenges and requirements we are confident in finding a suitable slide or linear rail.

Standard furniture fittings will suit the Thomas Regout or Fulterer range of rolled steel slides and linear rail. Whereas high end architectural furniture design may call for aluminum drawer slides, such as the 8027/8028 or the aluminum T6 slide from our professional range.

To suit yacht interior design, we can supply Viadana chandlery and stainless steel 316L telescopic slides.

Special & Commercial Vehicles

Our telescopic slides and tool mounts cover even the most demanding project for commercial vehicles. Smaller, lighter duty rolled steel or solid section slides from our General Devices range will suit a keyboard tray or a display screen, whereas cold drawn steel section slides will fit requirements for full vehicle extension such as mobile broadcast vehicles carrying several 1000kg’s.

With over 30 years of experience, we are more experienced than any other supplier and manufacturer to be able to advise of suitable and performing products.

Sliding Systems are an approved supplier for many prestigious and well-regarded manufacturers both in the United Kingdom and abroad.

With our flexible production facilities, we can accommodate any project and are pleased to assist with special requests whenever possible. Applications involving shock and vibration call for heavy duty, cold drawn steel section slides which we are also able to supply in 316L marine grade stainless steel. If weight or corrosion resistance are parameters that are important we suggest Aluminum T6 section slides, available in load capacities up to 330kg.

Outdoor applications can be fixed in place with specialist marine grade 316L hooks, which safely hold tool boxes or vehicle covers in place.

Response Vehicles

Roadside assistance and other categories of vehicle that need to stow and provide easy access to equipment can be enhanced through appropriate use of telescopic drawer slide and linear rail systems.

The twin requirements of operator safety and operational effectiveness are of paramount importance. GSF's ability to select and adapt from an unrivalled base product range, and its ability to assist with the design of custom and space-saving drawer systems enable us to make a significant contribution to your own product design.
