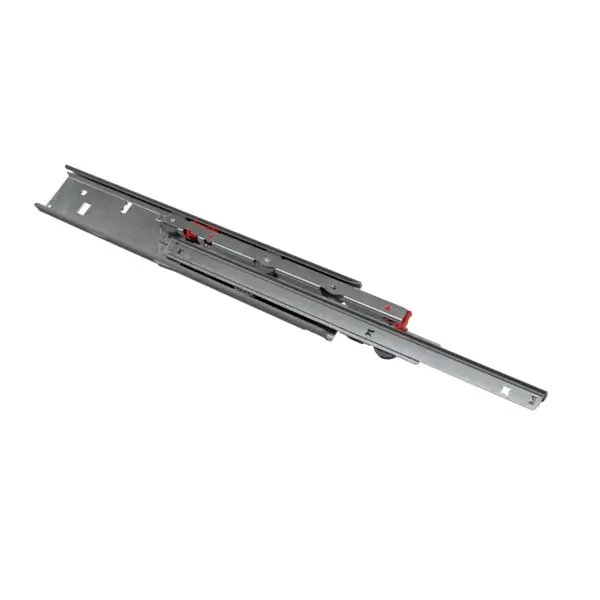

S/Steel Full Extn Side Mount - Progressive Action (70kg)

4017.795 (Stainless Steel Roller Slide) - FR791 SCC 70kg S/S Full Extn Side Mount - Progressive Action

Type: Full extension drawer slide - Material: Stainless steel, grade 441 (1.4509)
Features: Solid Delrin rollers
Mounting: Side mount - Width: 18mm  - Load: 70kg

Specification Details:

  • Space Envelope Width: 18mm
  • Height: 63mm
  • Closed Length: 300 - 750mm
  • Extension Length: 285 - 735mm
  • Maximum Load Capacity: 70 kg/pair
  • Number of beams: 3
  • Extension Type: Total
  • Material: Stainless Steel 441
  • Vibration Resistance: 3
  • Sold as a Pair

Profile:

Suitable For:

  • FURNITURE - Architecture & Sliding Units
  • SHOP FITTING - Displays
  • Drawer mounting
  • Developed for pantry slide outs
  • Museum displays
  • Shop point of sale units
  • Applications where a sliding drawer mount is required
Type: Full extension drawer slide

Material: Stainless steel, grade 441 (1.4509)
Features: Solid synthetic rollers
Mounting: Side mount
Width: 18mm
Load: 70kg

  • High lateral stability
  • Ideal running characteristic and smoothness of running through integrated progressive action
  • Integrated safety clip
  • Dual sided captive profile
  • Self-closing, synthetic stop
  • Heat resistant version available up to 110 deg C (+230 F)

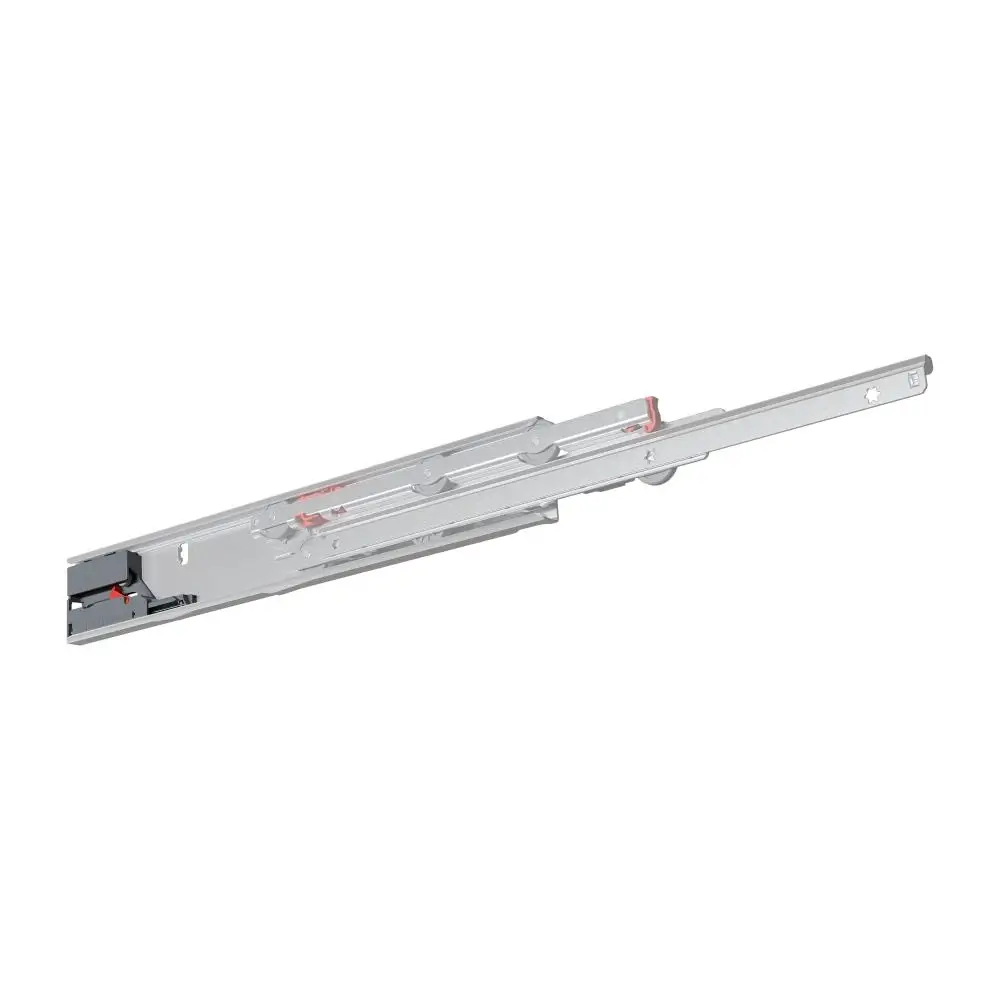

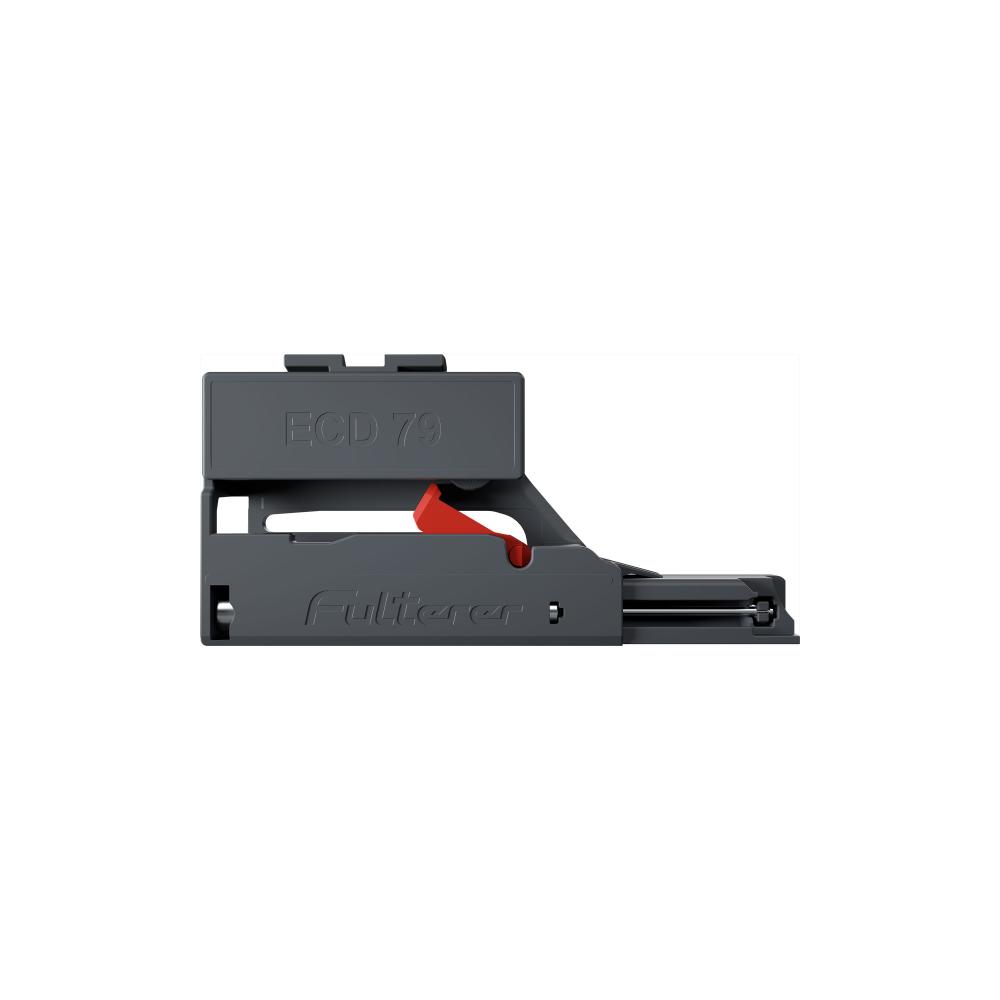

  • Easy Close Device (ECD) can be ordered optionally, from length 350 mm (13.78 in)

The FR795 SCC slide is available within 7-10 days across all lengths (300-750mm).

4017.795 SCC 450mm - Closed

4017.795 SCC 450mm - Open

Code

Closed Length (mm/inch)

Extension (mm/inch)

Max Load Capacity (kg/lbs)
4017.795.0300 300mm/11.81" 285mm/11.22" 70kg/154 lbs
4017.795.0350 350mm/13.78" 335mm/13.19" 70kg/154 lbs
4017.795.0400 400mm/15.75" 385mm/15.16" 70kg/154 lbs
4017.795.0450 450mm/17.72" 435mm/17.13" 70kg/154 lbs
4017.795.0500 500mm/19.69" 485mm/19.09" 70kg/154 lbs
4017.795.0550 550mm/21.65" 535mm/21.06" 70kg/154 lbs
4017.795.0600 600mm/23.62" 585mm/23.03" 70kg/154 lbs
4017.795.0650 650mm/25.59" 635mm/25" 70kg/154 lbs
4017.795.0700 700mm/27.56" 685mm/26.97" 70kg/154 lbs
4017.795.0750 750mm/29.53" 735mm/28.94" 70kg/154 lbs

Downloads Access

To download the CAD files and specifications for this product you need to be logged in.

Data Sheet & main product information -

4017.FR795 SCC Datasheet

4017.795 - 300mm - closed - STEP File
4017.795 length 300mm (11.8″) - closed

4017.795 - 300mm - open - STEP File
4017.795 length 300mm (11.8″) - open

4017.795 - 350mm - closed - STEP File
4017.795 length 350mm (13.78″) - closed

4017.795 - 350mm - open - STEP File
4017.795 length 350mm (13.78″) - open

4017.795 - 400mm - closed - STEP File
4017.795 length 400mm (15.75″) - closed

4017.795 - 400mm - open - STEP File
4017.795 length 400mm (15.75″) - open

4017.795 - 450mm - open - STEP File
4017.795 length 450mm (17.72″) - closed

4017.795 - 450mm - open - STEP File
4017.795 length 450mm (17.72″) - open

4017.795 - 500mm - closed - STEP File
4017.795 length 500mm (19.69″) - closed

4017.795 - 500mm - open - STEP File
4017.795 length 500mm (19.69″) - open

4017.795 - 550mm - closed - STEP File
4017.795 length 550mm (21.65″) - closed

4017.795 - 550mm - open - STEP File
4017.795 length 550mm (21.65″) - open

4017.795 - 600mm - closed - STEP File
4017.795 length 600mm (23.62″) - closed

4017.795 - 600mm - open - STEP File
4017.795 length 600mm (23.62″) - open

4017.795 - 650mm - closed - STEP File
4017.795 length 650mm (25.59″) - closed

4017.795 - 650mm - open - STEP File
4017.795 length 650mm (25.59″) - open

4017.795 - 700mm - closed - STEP File
4017.795 length 700mm (27.56″) - closed

4017.795 - 700mm - open - STEP File
4017.795 length 700mm (27.56″) - open

4017.795 - 750mm - closed - STEP File
4017.795 length 750mm (29.53″) - closed

4017.795 - 750mm - open - STEP File
4017.795 length 750mm (29.53″) - open

Furniture & Architecture

We are delighted to be able to advise our customers on the most diverse projects possible.

One day we could be talking to an ambitious DIY customer who wants to install a removable console tray in his game room and the next project could be a whole building interior refurbishment destined for apartments. Whilst each project represents different challenges and requirements we are confident in finding a suitable slide or linear rail.

Standard furniture fittings will suit the Thomas Regout or Fulterer range of rolled steel slides and linear rail. Whereas high end architectural furniture design may call for aluminum drawer slides, such as the 8027/8028 or the aluminum T6 slide from our professional range.

To suit yacht interior design, we can supply Viadana chandlery and stainless steel 316L telescopic slides.

Shop Fitting & Display

The retail sector is increasingly becoming a shopping ‘experience’ therefore the fittings for such outlets are vital to fit the bill. With our full range of slides, we can help you achieve both design and functionality.

Our lighter duty slides are well suited for smaller drawers or applications where little load is applied when extended. If the project requirements are to move a wall from its original position to display goods a bottom mount slide might be more suitable due to space restrictions. The Fulterer Range of vertical pull out slides provides stability, load capacity as well as the sleek design required in current retail outfits. All slides in the Fulterer range are available in different finishes (white, grey and black) which can be supplied against MOQ’s.
